AVEXA-HDMIEX-18

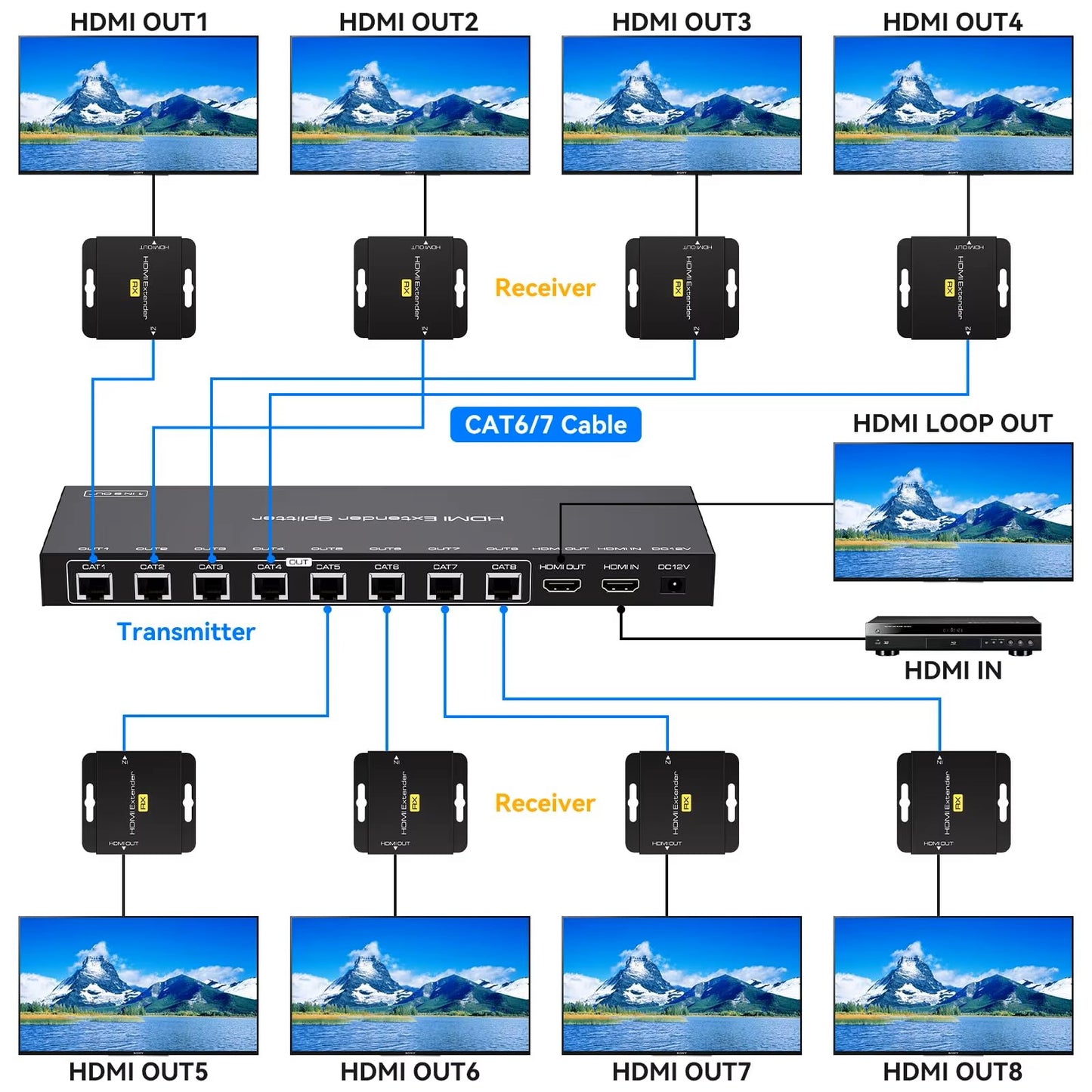

• 8-Port HDMI Extender Splitter – Distributes one HDMI input to up to 8 HDMI outputs over Cat6/7 cables.
• Long-Distance Transmission – Extends HDMI signals up to 130ft (40m) over Cat6/7 cables without signal loss.
• 1080p Full HD Support – Delivers crystal-clear 1080p resolution for high-quality video output.
• Power Over Cable (PoC) – Only the transmitter requires a power adapter, as receivers are powered through the network cables.
• HDMI Loop-Out Port – Provides a local HDMI output for monitoring the source device.
• Plug & Play Setup – No additional software or drivers required, making it easy to install and use.
• Wide Compatibility – Works with PCs, gaming consoles, Blu-ray players, projectors, and more.
• Sturdy Metal Housing – Ensures durability and better heat dissipation for long-term operation.

Video & Audio

• Input Signal: HDMI 1.4
• Maximum Resolution: 1080p @ 60Hz
• Supported Resolutions: 720p, 1080i, 1080p
• Transmission Distance: Up to 130ft (40m) over Cat6/7 cables
• Audio Support: LPCM, DTS-HD, Dolby-TrueHD

Ports & Connectivity

• HDMI Input: 1x HDMI
• HDMI Loop-Out: 1x HDMI
• RJ45 Output Ports: 8x CAT6/7 (Transmitter)
• RJ45 Input Ports: 8x CAT6/7 (Receivers)
• Power Interface: DC 12V

Power & Efficiency

• Power Over Cable (PoC): Yes, receivers get power from the transmitter
• Power Supply: 12V DC adapter (included)

Build & Design

• Material: Metal housing for durability and heat dissipation
• Color: Black
• Mounting Options: Wall-mountable receivers

Compatibility

• Works with PCs, Gaming Consoles (PS5, Xbox), Blu-ray Players, Set-Top Boxes, Projectors, TVs, and more

Package Includes

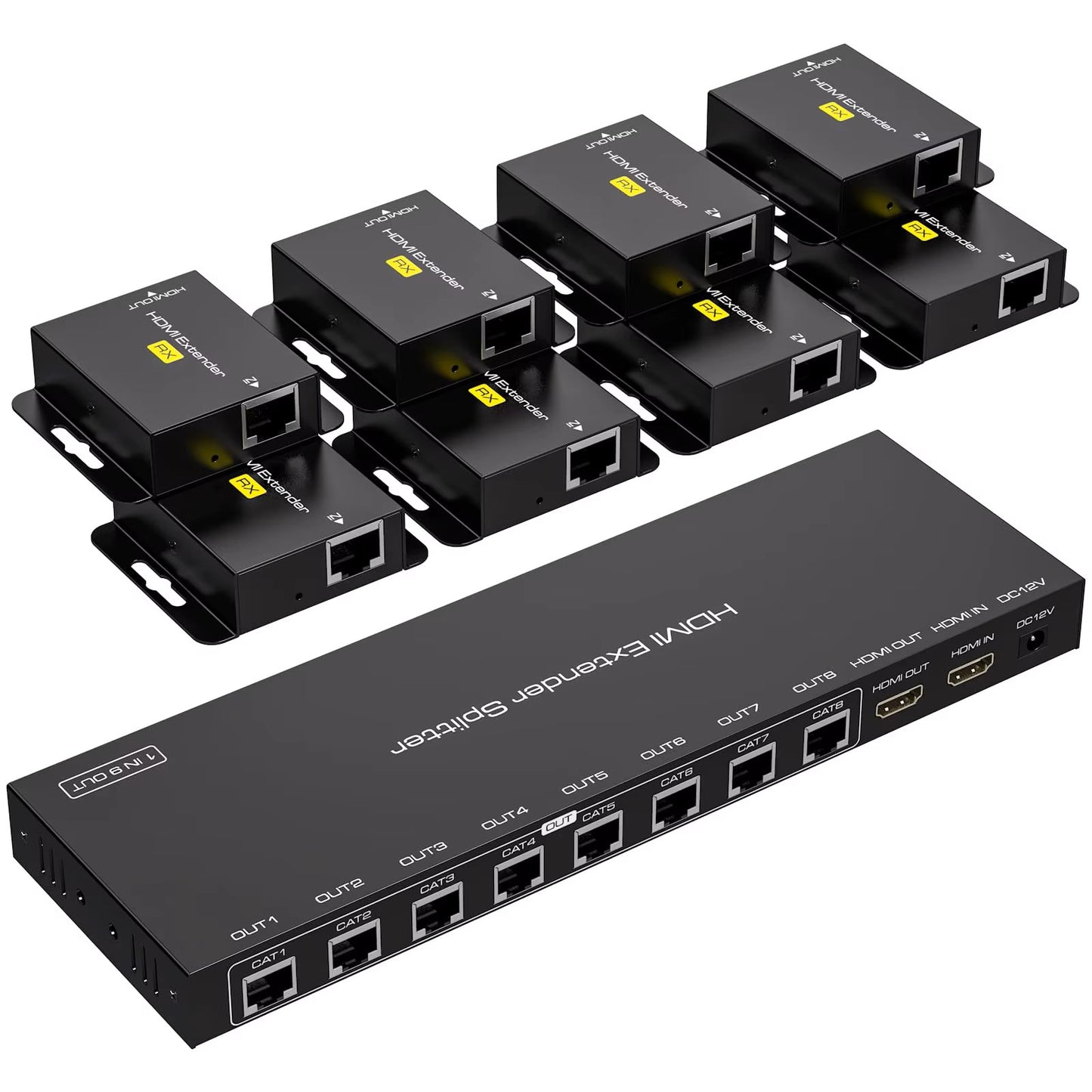

• 1x HDMI Extender Splitter (Transmitter)
• 8x HDMI Receiver Boxes
• 1x 12V Power Adapter
• 1x User Manual
