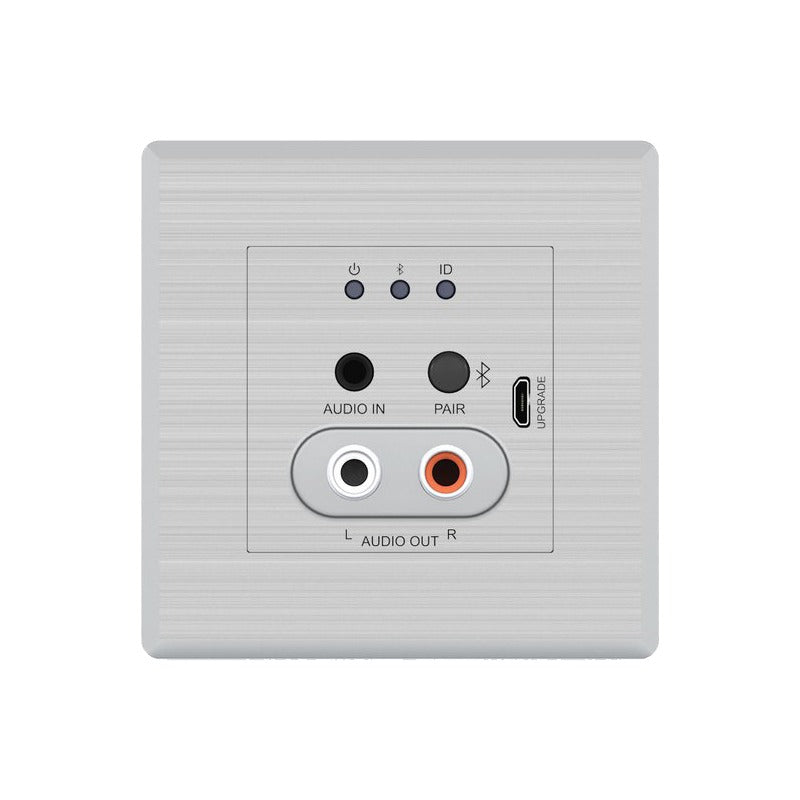

DA11ABL-WP

• Dante® network wall plate interface for Bluetooth and analogue L/R audio inputs, and L/R audio outputs.
• Converts 2ch Bluetooth, or un-balanced audio sources to Dante® audio.
• Converts 2x Dante® audio channels to un-balanced audio outputs.
• Configurable Bluetooth naming allows for simple discovery of the unit.
• Adjustable input sensitivity from +24dBu to -28dBV via control software.
• Adjustable output gain from +20dBu to -28 dBV via control software.
• Supports: 44.1, 48 & 96kHz sample rates @ 16, 24 or 32 Bit.
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller).
• Supports AES67 RTP audio transport.
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch.
• Supports power via 12V DC adapter (supplied) for when network switch does not support PoE.
• Magnetic faceplate surround allowing for both UK & EU backbox compatibility.

• Audio Input Connectors: 1 x Analogue Left / Right audio (3.5mm stereo jack) .
• Audio Output Connectors: 2 x Analogue RCA (Left / Right).
• Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45).
• Bluetooth: Bluetooth V5.0 - SBC / MP3 / AAC / APT-X / APTX-LL / APTX-HD, 44.1K-48KHz 16 / 24Bit.
• Configuration Switches: 1 x Push button (connect / selection).
• Firmware  Upgrade: 1 x Micro-USB UART port.
• Module Dimensions (W x H x D): 74mm x 74mm x 50mm (without faceplate).
• Faceplate Dimensions (W x H x D): 85mm x 85mm x 5mm.
• Cut Out Dimensions (W x H x D): 52mm x 55mm x 38mm.
• Mounting Hole Spacing: UK 60mm CTC, EU 60mm CTC.
• Backbox Mounting Depth: 40mm (minimum), 47mm (recommended), UK or EU single gang.
• Shipping Weight: 0.3kg.
• Operating Temperature: 32°F to 104°F (0°C to 40°C).
• Storage Temperature: - 4°F to 140°F (- 20°C to 60°C).
• Power Supply: Class 0 IEEE 802.3af PoE or 12v/1A DC 2-Pin Phoenix connector.
