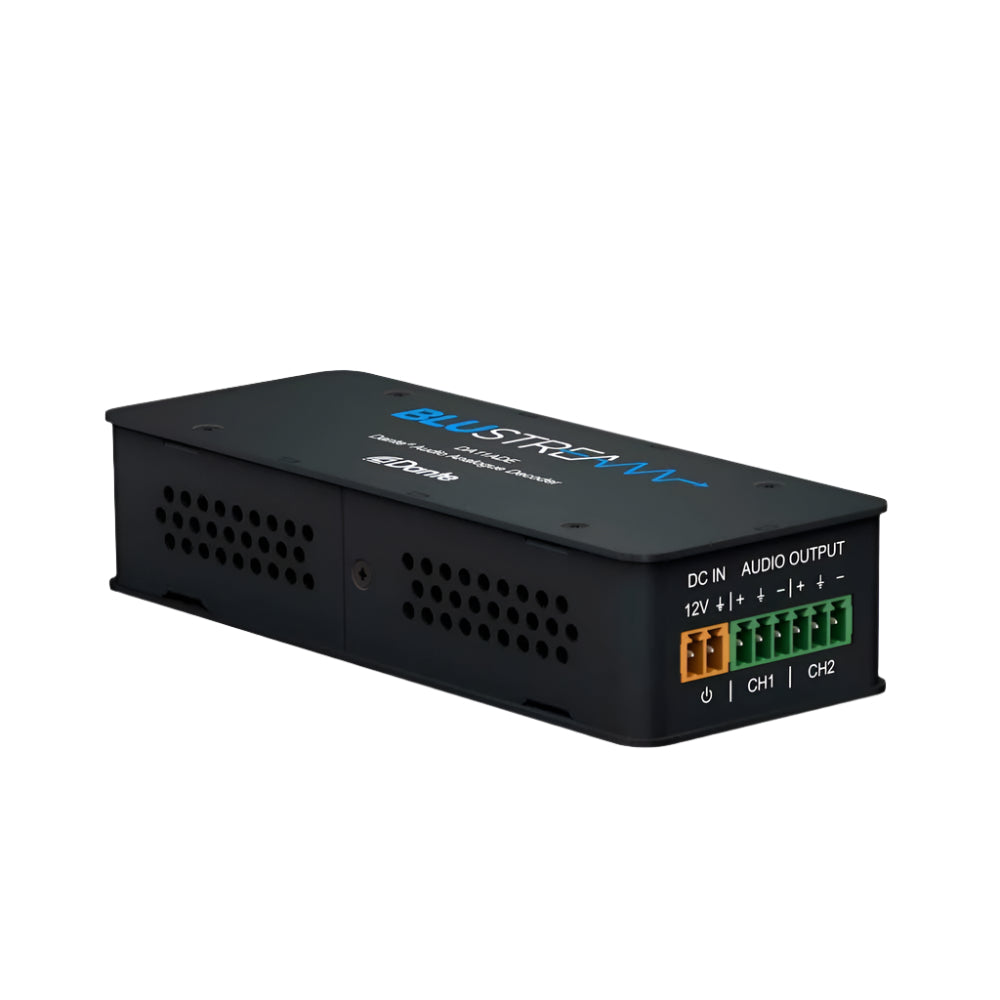

DA11ADE

• Analogue audio outputs support both balanced and unbalanced audio signals.
• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit.
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller).
• Independent output gain control per channel:+ 18dBu to -10dBV.
• Supports AES67 RTP audio transport.
• Features Class 1 802.3af PoE for powering of product from any PoE switch.

• Audio Input Connectors: 1 x RJ45, female (100Mbps Dante® network) .
• Audio Output Connectors: 6-pin Phoenix connector (2ch balanced / un-balanced analogue audio).
• Casing Dimensions (L x W x H): 120mm x 47mm x 26mm.
• Shipping Weight: 0.2kg.
• Operating Temperature: 32°F to 104°F (0°C to 40°C).
• Storage Temperature: -4°F to 140°F (-20°C to 60°C).
• Power Supply: Class 1 IEEE 802.3af POE PD.
