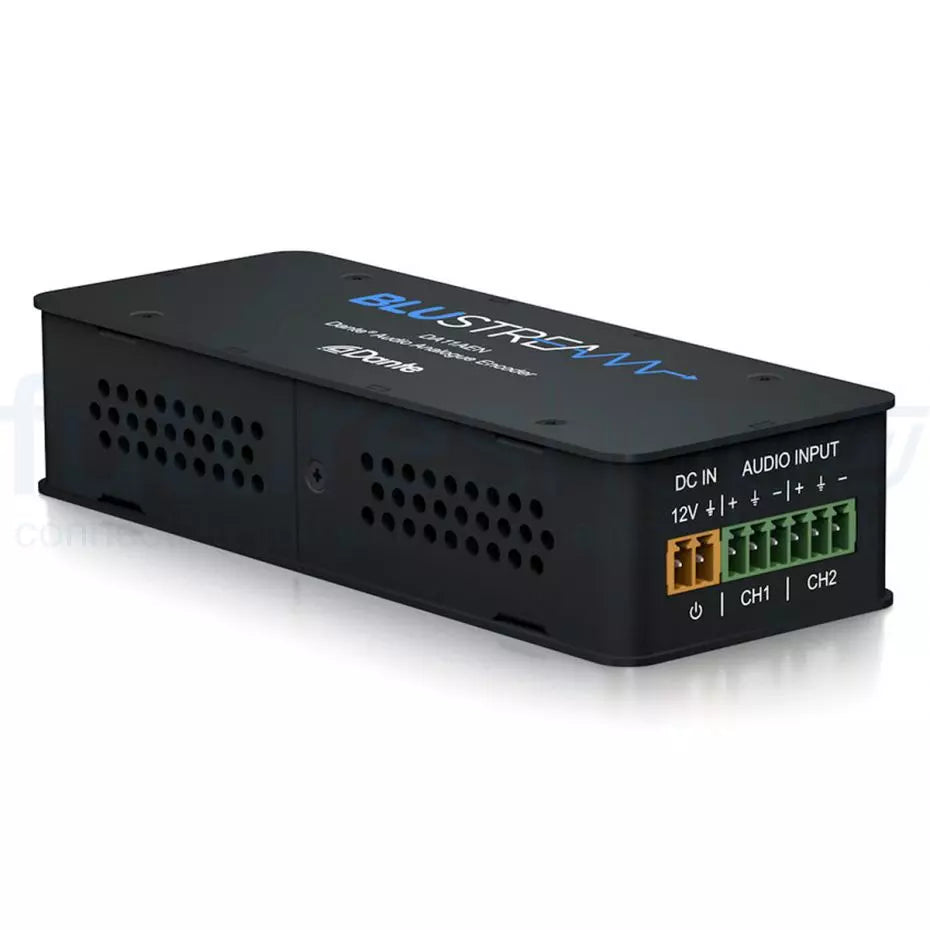

DA11AEN

• Encodes unbalanced or balanced 2ch analogue audio to a Dante® digital signal.
• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit.
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller).
• Independent gain control per channel: +24dBu to-10dBV.
• Supports AES67 RTP audio transport.
• Features Class 1 802.3af PoE for powering of product from any PoE switch.
• Local 12v power supply input for when network switch does not support PoE.
• Dante® is a registered trademark of Audinate Pty Ltd.

• Audio Input Connectors: 6-PIN Phoenix connector (2ch balanced / un-balanced analogue audio).
• Input Impedance: 25k Ohm (balanced), 12.5k Ohm
  (unbalanced).
• Audio Input Connectors: 6-Pin Phoenix connector (2ch balanced/un-balanced analogue audio).
• Input Impedance: 25k Ohm (balanced), 12.5k Ohm
  (unbalanced).
• Audio Output Connectors: 1x RJ45, female (100Mbps Dante® network), PoE.
• Casing Dimensions (W x H x D): 120mm x 26mm x47mm.
• Shipping Weight: 0.3kg.
• Operating Temperature: 32°F to 104°F (0°C to 40°C).
• Storage Temperature : -4°F to 140°F (-20°C to 60°C).
• Power Supply: Class 1 IEEE 802.3af PoE or 12v/1A DC 2-Pin Phoenix connector.

Data Sheet.PDF
