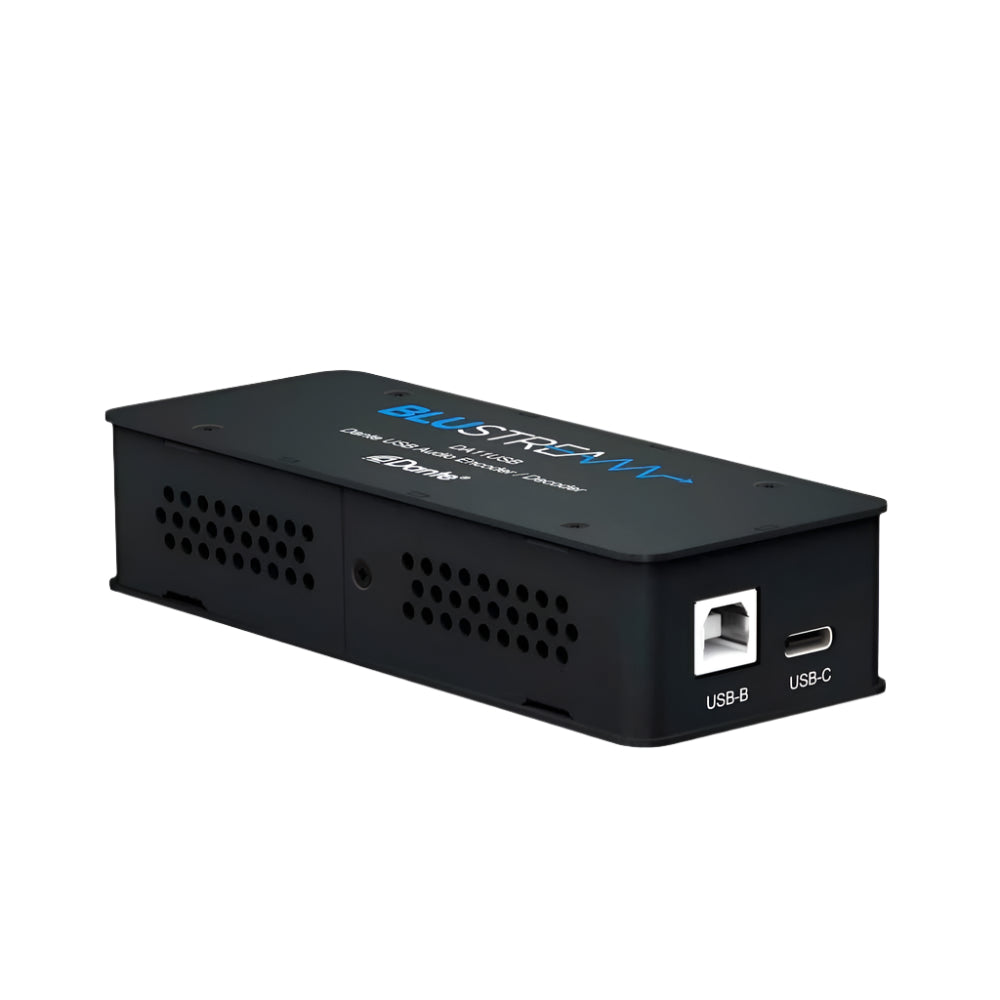

DA11USB

• Encodes 2ch USB audio to Dante® digital signal.
• Decodes a mono Dante® digital signal to USB audio.
• Selectable USB audio between USB Type-B and USB-C inputs.
• Compliant with USB Audio Device Class Specification V1.0 .
• Supports  44.1 & 48kHz sample rates @ 16-bit.
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller).
• Supports AES67 RTP audio transport.
• Features Class 3 IEEE 802.3af PoE for powering of product from any PoE switch.
• Supports power via 5V USB where network switch does not support PoE.

• Audio Input Connectors: 1x RJ45, female (100Mbps Dante® network), 1x USB Type B female, 1x USB Type C female.
• Audio Output Connectors: 1x RJ45, female (100Mbps Dante® network), 1x USB Type B female, 1x USB Type C female.
• Casing Dimensions (W x H x D): 120mm x 26mm x 47mm.
• Shipping Weight: 0.3kg.
• Operating Temperature: 32°F to 104°F (0°C to 40°C).
• Storage Temperature : -4°F to 140°F (-20°C to 60°C).
• Power Supply: Class 3 IEEE 802.3af PoE, or 5V USB .

Data Sheet.PDF
