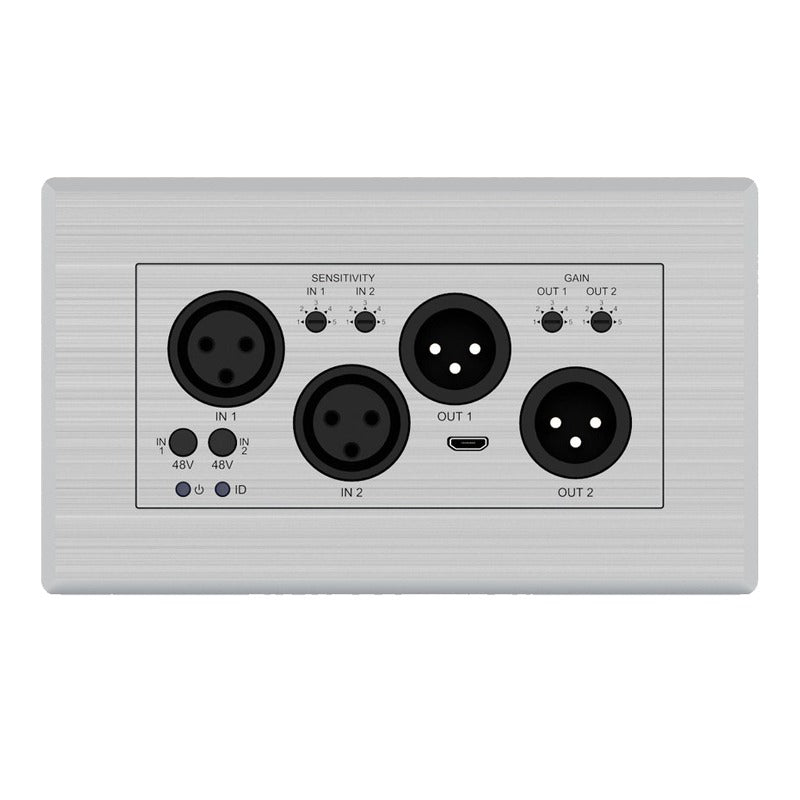

DA22XLR-WP

• Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputs.
• Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels.
• Converts 2 x Dante® audio channels to balanced / unbalanced audio outputs.
• Switchable 48V Phantom power for each MIC XLR input.
• Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input .
• Adjustable line gain from +18 dBu to -10 dBV for each XLR output.
• Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit.
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller).
• Supports AES67 RTP audio transport.
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch.
• Supports power via 12V DC adapter (not included) for when network switch does not support PoE.
• Magnetic faceplate surround allowing for both UK & EU backbox compatibility.

• Audio Input Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector .
• Audio Output Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector.
• Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45).
• Configuration Switches: 4 x 5 position rotary dials (Sensitivity / Gain), 2 x Push button (48V Phantom power).
• Firmware  Upgrade: 1 x Micro-USB UART port.
• Module Dimensions (L x W x H): 136mm x 76mm x 45mm (without faceplate).
• Faceplate Dimensions (L x W x H): 146mm x 86mm x 5mm.
• Cut Out Dimensions (L x W x H): 109mm x 50mm x 36mm.
• Mounting Hole Spacing: UK 121mm CTC, EU 60mm CTC.
• Backbox Requirements: UK double gang backbox / EU double gang backbox.
• Shipping Weight: 0.6kg.
• Operating Temperature: 32°F to 104°F (0°C to 40°C).
• Storage Temperature: - 4°F to 140°F (- 20°C to 60°C).
• Power Supply: Class 0 IEEE 802.3af PoE or 12v/1A DC 2-Pin Phoenix connector.
