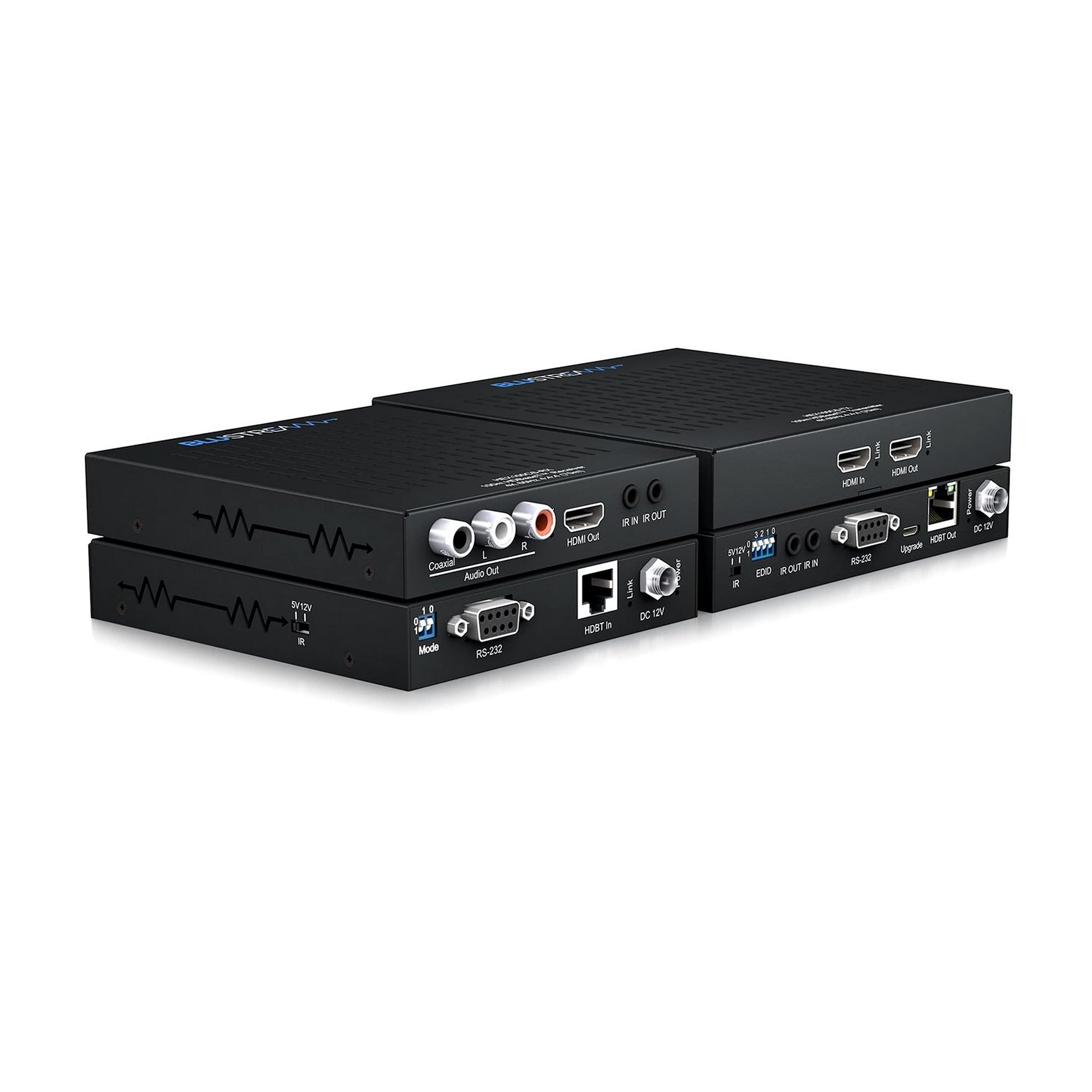

HEX100CS-KIT

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable.
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR.
• Video down-conversion on HDMI Receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the Transmitter HDMI loop out.
• Supports 4K 60Hz 4:4:4 UHD video up to 70m.
• Extends HDMI 1080p video up to 100m.
• Features 1 x HDMI loop-out on HEX100CS-TX for integrating local displays or cascading to multiple devices.
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K.
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions.
• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues.
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently.
• Supports bi-directional RS-232 pass-through.
• Supports bi-directional IR pass-through.
• Supplied with Blustream 5V IR receiver and emitter.
• Advanced EDID management.
• HDCP 2.2 compliant.

EX100CS-TX:

• Video Input Connectors: 1 x HDMI Type A, female.
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female.
• RS-232 Serial Port: 1 x DB-9 female.
• IR Input Ports: 1 x 3.5mm stereo jack.
• IR Output Ports: 1 x 3.5mm mono jack.
• EDID DIP Switch: 4-pin

• HEX100CS-RX:

• Video Input Connectors: 1 x HDBaseT™ RJ45 connector.
• Video Output Connectors: 1 x HDMI Type A, female.
• RS-232 Serial Port: 1 x DB-9 female.
• IR Input Ports: 1 x 3.5mm stereo jack.
• IR Output Ports: 1 x 3.5mm mono jack.
• Audio Output Connectors: 1 x RCA (SPDIF) & 2 x Analogue RCA (Left / Right).

• Power Supply: 12V/2A DC, screw type connector.
• Power Consumption: 12.7W.
• Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections).
• Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections).
• Receiver Dimensions (W x D x H): 113 x 124 x 22mm (without connections).
• Receiver Dimensions (W x D x H): 113 x 138 x 22mm (with connections).
• Ind. Extender Weight: 0.35kg (excluding accessories).
• Shipping Weight: 1.4kg.
• Operating Temperature: 32°F to 104°F (0°C to 40°C).
• Storage Temperature: -4°F to 140°F (-20°C to 60°C).
• Mounting Kits included.
