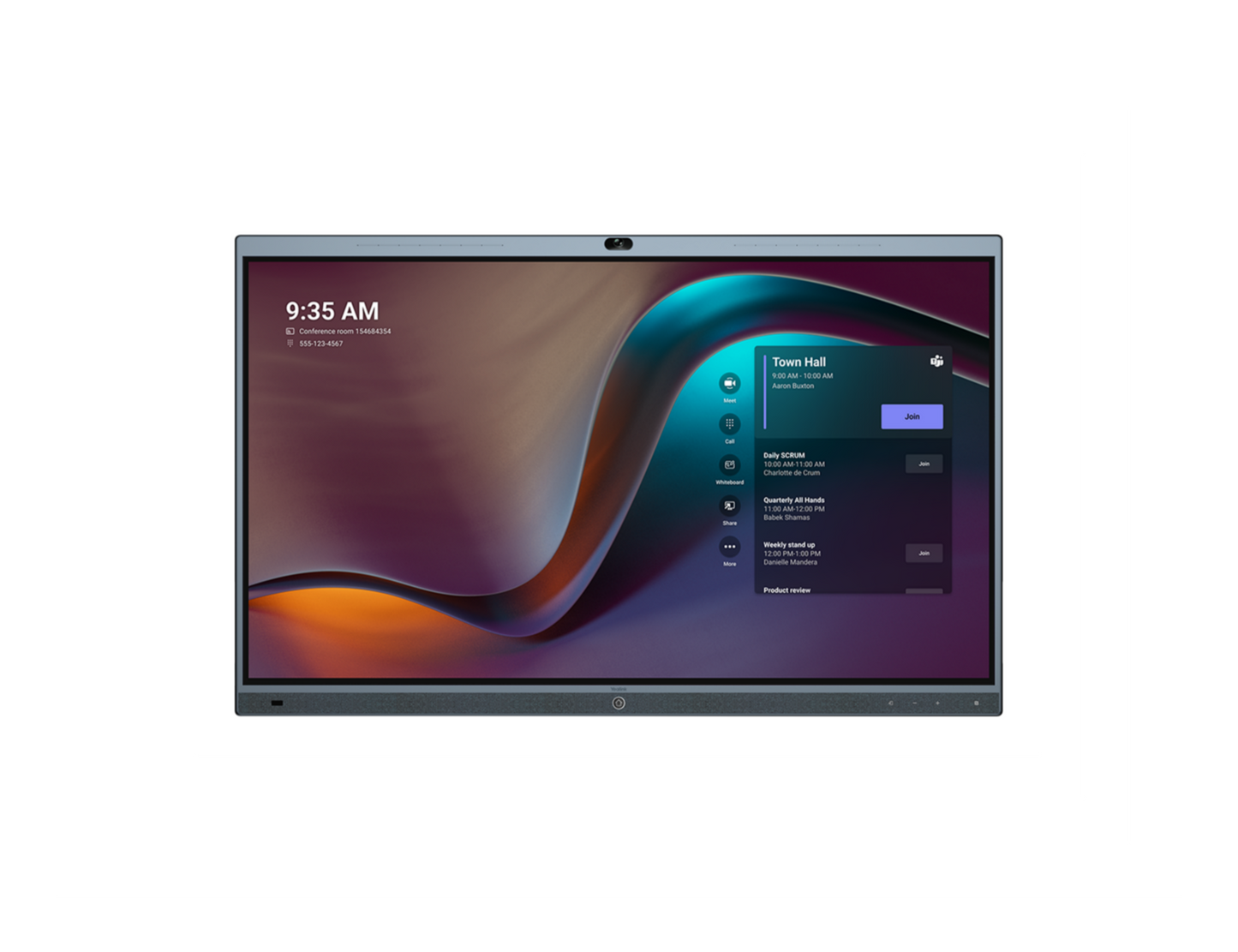

MB65-A001

• Smart Collaboration Whiteboard
  MeetingBoard with native Teams experience is equipped with Android 10. A 65-inch LED touch
  screen and the Teams-tailored operation interface bring a rich 4K visual presentation and easy
  menu navigation. There are a four-level input smart digital ink recognition feature supported on the
  touch - writing with pen tip, navigating with fingers, erasing with pen tail and the palm rejection.
  Multi-inking simultaneously is also supported for multi people collaboration on one board to
  create and express themselves freely. Most importantly, the Microsoft Teams whiteboarding is a cloud application that could allow everyone to join and collaborate at any place. The collaborative
  diagram, productive templates and the other crucial components are empowering attendees to
  gather their innovative ideas efficiently.

• Professional Conferencing AI Video Experience: The built in 4K camera is paired with an image sensor that is professional in terms of sharpness,
  color rendition and noise handling to provide a FHD video conferencing experience. Not to mention
  the classic real time Auto Framing and Speaker Tracking, there are more AI based camera
  tracking features like Picture in Picture, Presenter Tracking, People Feed and the others would be
  supported on MeetingBoard to draw attendees into an immersive conference environment.

• Premium Full-Duplex Conferencing Experience:
  Built-in 16 MEMS beamforming microphone arrays make MeetingBoard have a strong ability
  of noise proof and reverberation suppression. The new gen beamforming algorithm, together
  with enhanced AI technology of processing on acoustic echo cancellation and the reverberation
  suppression, brings high-quality 8m full-duplex call and realizes more precise voice pickup. In
  addition, 4+2 stereo microphones provide spatial stereo video, as if all participants are sitting
  across the table from each other.

• Fit to All Rooms, One Stop Solution:
  Corporate could be easy to build a complete intelligent meeting space by pairing MeetingBoard
  with Yealink Room Panel, Room Sensor, and Touch Console. Not only that, but it also realized just
  one tap to achieve seamless switching Windows/Android platforms or BYOD mode, this brings immeasurable usage possibilities to MeetingBoard. To extend to a medium or large meeting
  space, MeetingBoard can also breezes through to cover by connecting with detachable optical
  PTZ camera, wireless expansion microphones and cascading dual-touch display.

Display
• 65-inch D-LED touch screen
• Ultra HD 4K (3840 x 2160 screen resolution)
• Anti-glare and anti-fingerprint coating
• Contrast ratio 1200:1(typ.)
• Viewing angle 178°(H) / 178°(V)
• Ratio 16:9
• Refreshing Frequency 60Hz
• Touch Points 20 points
• Location Accuracy ±1mm(over 90% Area)
• Contact Height < 2mm
Built-in Camera
• 8MP Sony sensor
• 120° Diagonal field of view
• 4x e-PTZ
• Electric privacy shutter
• Supports PTZ camera module (optional) to build
an intelligent dual-cam system*
• Intelligence Features
- Auto Framing
- Speaker Tracking
Audio
• Built-in 16 MEMS Mic Array
• 4 full range+2 tweeter stereo speakers

• Support RCA input/output
• Yealink Enhanced Noise Proof Technology
• Acoustic Echo Cancellation
• Reverberation Suppression
• Auto Gain Control
• Beamforming Technology
• CNG/PLC/AJB/De-Rerb

Connections
• 1 x detachable PTZ camera port
• 1 x HDMI output (CEC supported)
• 1 x HDMI input (only for source input)
• 2 x RCA audio input
• 2 x RCA audio output
• 1 x Yealink VCH port (RJ-45)
• 3 x USB Type A
• 1 x 10/100M/1000M Ethernet port
• 1 x Power port
• 1 x Windows OPS slot
• 1 x Security lock slot
• 1 x Reset slot
• Motion sensor
• WiFi6 2x2 MIMO dual-band
• Built-in Bluetooth 5.0
• NFC supported

Data Sheet.PDF
