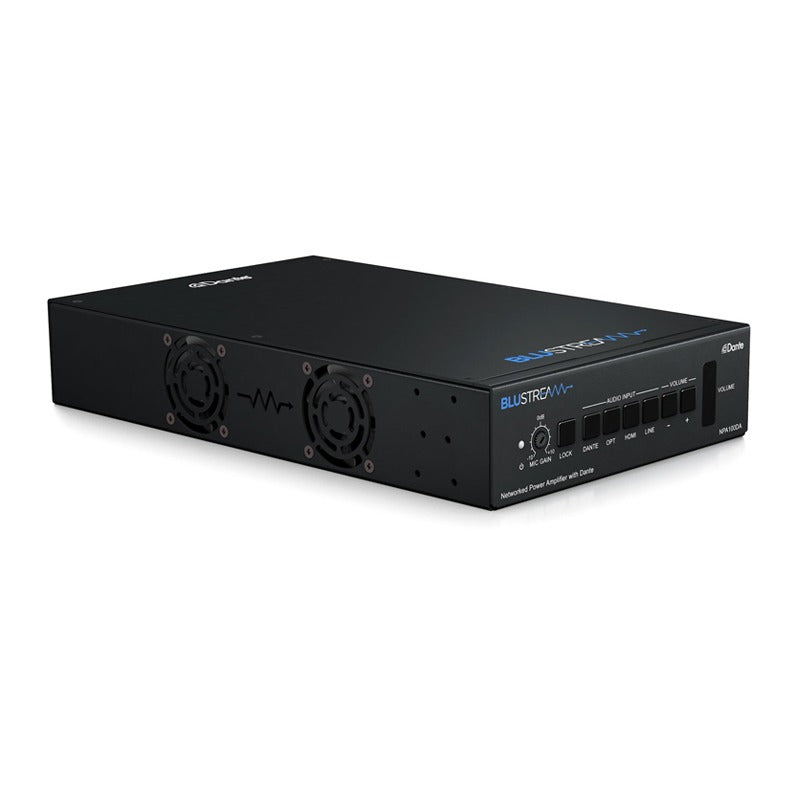

NPA100DA

• Advanced network audio amplifier with Dante integration.
• Supports 2 x 50W @ 4 / 8 ohm, 1 x 100W @ 4 / 8 ohm, or 70 / 100V constant output for multiple speakers with longer cable runs.
• Supports power via PoE++ on Dante LAN connection or via local power supply.
• Dual network option - independent Dante and LAN control ports, or combined to a single LAN port.
• Audio inputs include: - 2ch Dante/AES67 audio input
• HDMI ARC with CEC volume control.
• MIC audio input with phantom power and auto‐ducking.
• 2ch Analogue audio input – unbalanced & balanced.
• 1 x Optical (S/PDIF) audio input
• Audio outputs include:
• 2ch Dante/AES67 audio Output
• 2ch variable/fixed analogue output, balanced/un‐balanced.
• 1 x LFE subwoofer output.
• Independent gain control for input channels.
• DSP with 31 band EQ with +/-10dB gain and audio delay.
• Local 12V input trigger for automated power control.
• Control via front panel, IR, RS‐232 and IP.
• Auto standby mode with signal sensing.
• In‐built web-GUI for setup and control.

• Audio Inputs: 1 x 5-Pin Phoenix connector (analogue), 1 x 3-Pin Phoenix connector (MIC), 1 x HDMI Type A, 19-pin, female, locking (ARC), 1 x Optical (S/PDIF).
• Audio Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker), 1 x 3-Pin Phoenix connector (70 / 100v speaker), 1 x 5-Pin Phoenix Connector (analogue audio), 1 x 2-Pin Phoenix connector (LFE subwoofer).
• Ethernet Port: 1 x LAN RJ45 connector (Dante), 1 x LAN RJ45 connector (Network).
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector.
• IR Input: 1 x 3-Pin Phoenix connector.
• Trigger Input: 1 x 2-Pin Phoenix connector.
• 19" Rack mounting and wall / surface mounting kit included.
• Dimensions (W x D x H ): 250mm x 150mm x 45mm.
• Dimensions Including Connections (W x D x H ): 252mm x 150mm x 45mm.
• Shipping Weight: 2.8kg.
• Operating Temperature: 32°F to 104°F (0°C to 40°C).
• Storage Temperature: -4°F to 140°F (-20°C to 60°C).
• Power Supply: PoE++ Type 4, 1 x 36V/5.5A DC.
