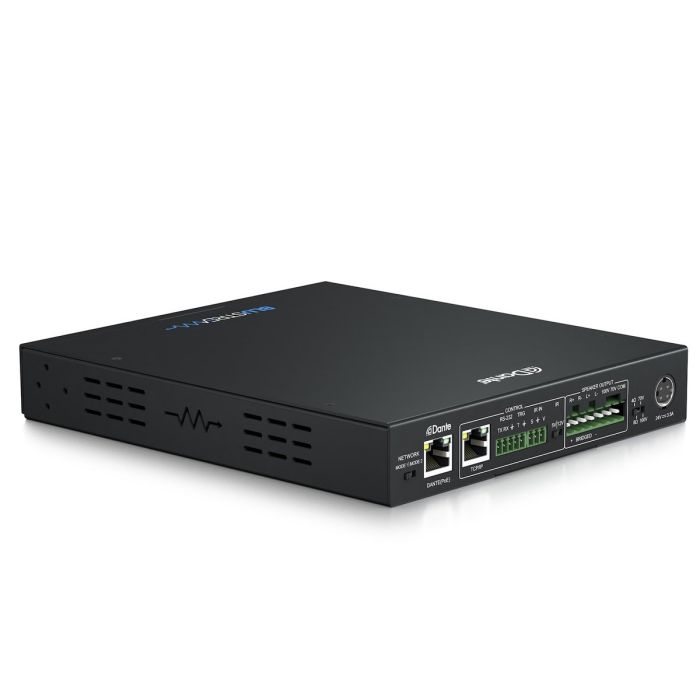

NPA70DA

• Advanced network audio amplifier with Dante® integration.
• Supports 2 x 35W @ 4 / 8 ohm, 1 x 70W @ 4 / 8 ohm or 70 / 100V constant output for multiple speakers with longer cable runs.
• Supports power via PoE++ on Dante® LAN connection or local power supply.
• Dual network option - independent Dante® and LAN control ports, or combined to a single LAN.
• 2ch Dante® / AES67 audio input.
• DSP with 31 band EQ with +3dB/-10dB and audio delay.
• Local 12V input trigger for automated power control.
• Control via front panel, IR, RS-232 and IP.
• Auto standby mode with signal sensing.
• In-built web-GUI for setup and control.

• Audio Inputs: 1 x RJ45 Dante® Audio connection.
• Audio Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker), 1 x 3-Pin Phoenix connector (70 / 100V speaker).
• Ethernet Port: 1 x LAN RJ45 connector (Dante®), 1 x LAN RJ45 connector (Network).
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector.
• IR Input Ports: 1 x 3-Pin Phoenix connector.
• Trigger Input: 1 x 2-Pin Phoenix connector.
• Rack Mountable: 19” Rack mounting and wall / surface mounting kit included.
• Casing Dimensions (W x H x D): 202mm x 175mm x 31mm.
• Dimensions Including Connections (W x H x D): 245mm x 175mm x 31mm.
• Shipping Weight: 1.8kg.
• Operating Temperature: 32°F to 104°F (0°C to +40°C).
• Storage Temperature: -4°F to 140°F (-20°C to +60°C).
• Power Supply: PoE++ Type 4, or 24V/3.5A DC 4-pin DIN

Data Sheet.PDF
