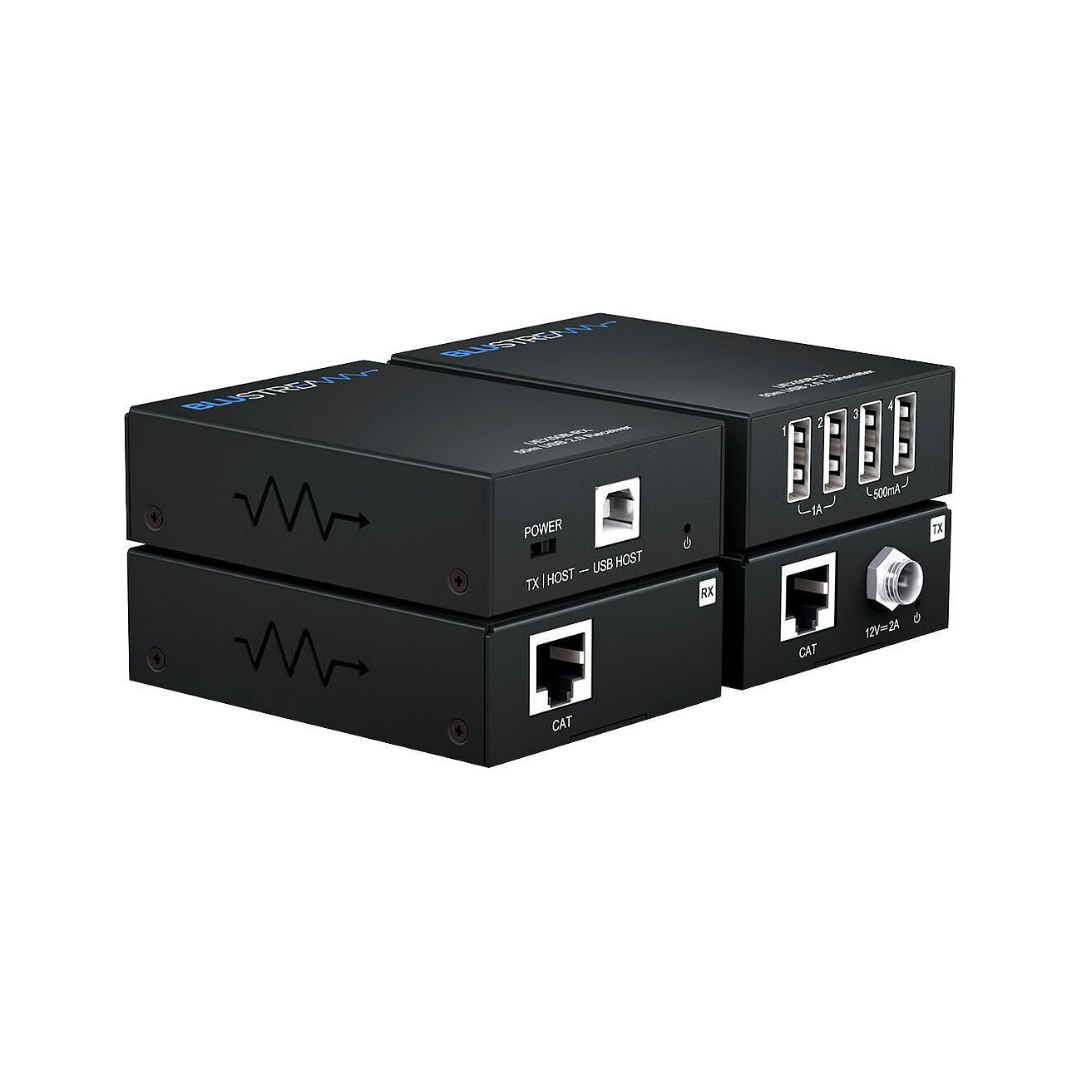

UEX50B-KIT

• Extends USB up to a distance of 50m over a single CAT cable.
• Supports USB 2.0 signal extension.
• Backwards compatible with USB 1.1 devices.
• Combined transmitted data bandwidth up to 480Mbps .
• 1 x USB Type-B on the Receiver for connection to USB host .
• 4 x USB-A hub on transmitter for connection to USB devices.
• USB Type-A ports 1-2 support 5V 1A, with ports 3-4 supporting 5V 500mA.
• Simple plug and play, no driver installation or setup require.

• UEX50B-RX:

• CAT Connectors: 1 x RJ45 connector.
• USB Port: 1 x USB Type-B

• UEX50B-TX:

• CAT Connectors: 1 x RJ45 connector.
• USB Port: 4 x USB Type-A.

• Casing Dimensions (W x D x H ): 84mm x 60mm x 23.5mm (TX/RX).
• Shipping Weight (kit): 0.5kg.
• Operating Temperature: 32°F to 104°F (-5°C to +55°C).
• Storage Temperature: -4°F to 140°F (-25°C to +70°C).
• Power Supply: 12V/2A DC.
