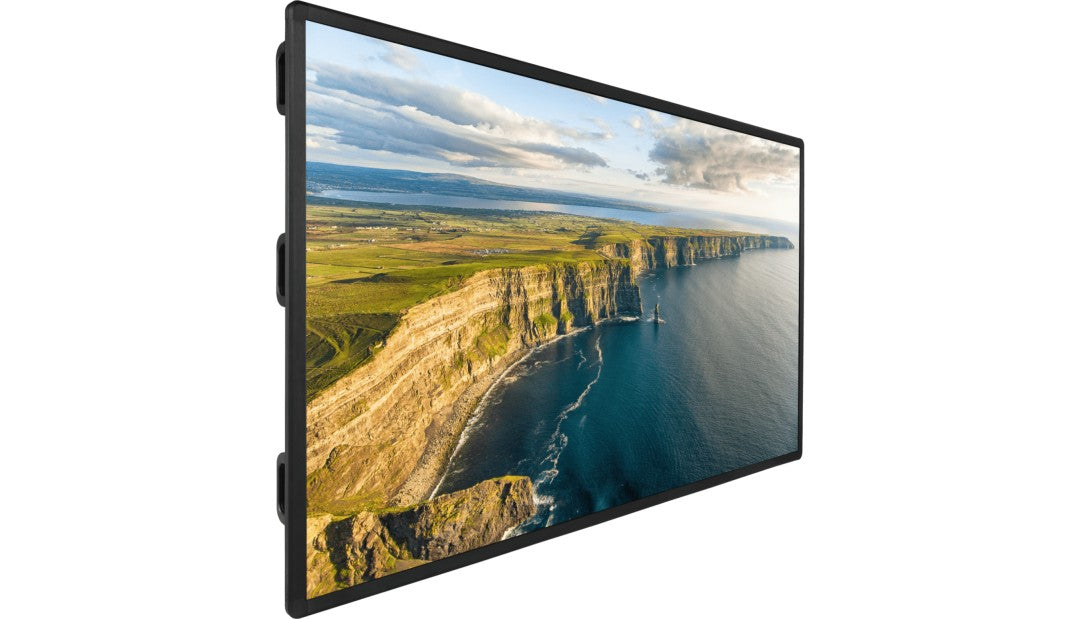

XD86D-4H

• Main Features
• HTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, SNMP
• Mechanical Features
• Joystick, Rocker Switch, Detachable Power Cable, Detachable Logo, Internal USB Cover
• Speaker2x12 W

• Panel:
• Screen Size: 86"
• Panel Technology: IPS
• Backlight Type: DLED
• Brightness (typical): 400 cd/m²
• Native Resolution: 3840 x 2160 (16:9) - UHD
• Contrast Ratio (typical): 1200:1 (typ.)
• Dynamic Contrast Ratio: 40000:1
• Panel Life Time (Min. ) 30000 Hrs
• Response Time (typical): 8 ms.
• Active Area (H x V): 1895 (H) x 1066 (V) mm
• Viewing Angle: 178° Vert., 178° Hor (89U/89D/89L/89R) @ CR>10
• Color Value: 1.07G (8bits + FRC)
• Color Gamut: 72% NTSC
• Haze Level: 25 %
• Refresh Rate: 60 Hz
• Orientation: Landscape
• Operation Hours: 16/7
• Area of Usage: Indoor
